    Stainless Steel Horizontal Burning Test For Plastic Material Flame Combustion Performance Test 220v

    Ask Lasest Price
    Brand Name : vouch
    Model Number : 5402
    Certification : ISO
    Price : negotiable
    Payment Terms : tt
    Supply Ability : 30sets per month
    Delivery Time : 31days
    • Product Details
    • Company Profile

    Stainless Steel Horizontal Burning Test For Plastic Material Flame Combustion Performance Test 220v

    Stainless Steel Horizontal Burning Test For Plastic Material Flame Combustion Performance Test 220v

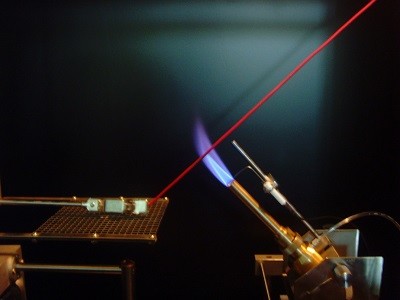

    Lab Test Equipment Vertical Flammability Tester, Horizontal Flammability Tester is suitable for measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode
    to make the operation easy andsafe.

    Lab Test Equipment Vertical Flammability Tester, Horizontal Flammability Tester use PLC + colorized LCD touch screen or LCD meter to control, with fine and easy understanding operation interface and testing data printer, can print the testing conditions and result, which is convenient to record the testing results. The table size has several specifications like 0.5, 0.75, and 1 cubic meter. The special size can be customer-made, you can choose touch screen control or touch tone control.


    5402 material horizontal-vertical burner tester


    1. accord with standard:UL 94 GB2408 IEC60695-11 ISO 1210 IEC60707 GB/T 5169
    2. test project:HB V HBF 5V VTM several methods can be select
    3. size:1200*600*1120
    4. inner case volume:0.75 cubic meter
    5. flame height adjust:10-200mm
    6. flow rate of flame adjust:100-1000mm/min
    7. flame differential pressure adjust:5-200mm water column
    8. flame angle adjust:0-45degree
    9. burn height adjust:50mm
    10. sample vertical move distance:450mm
    11. sample horizontal move distance:180mm
    12. burning time adjust range:0-99.99s
    13. residual flame,residual combustion timing range:0.0s~999.9s
    14. burning time chronoscope resolution :0.01s
    15. residual flame,residual burning time resolution:0.1s
    16. background inner case:black (power baking varnish)

    Features:

    1. in accordance with newest test standard
    2. import control component
    3. case with 2mm baking varnishing inner and outerside of cold panel
    4. good quality aluminum anodising special clamp
    5. colour touch screen controller ,test formula selected directly
    6. PLC formula control,one touch one person operate independently
    7. Liner bearing with ni-cr optic axis transmission design
    8. Silent design armoured glass sliding window
    9. With Hand operation entry

    Standard configure:

    1.)flame height adjust devie by 1pcs

    2.)horizontal burn test clamp by 1pcs

    3.)vertical burn test clamp by 1 pcs

    4.)pallet by 1pcs


    select configure:

    flame temperature adjust function


    StandardUL94 ISO1210
    Size1200*600*1120mm
    Inner case volume0.75CBM
    Flame height adjust10-200mm
    Flow rate of flame adjust100-1000mm/min
