Model:5801A

Accord with standard:GB/T 2406.2-2009

GB/T 5454

ISO 4589-2-2006

ASTM D2863

NES 714

Technology data:

Technology data:

1.) test range:0~100%

2.) working pressure:0.05-0.3Mpa

3.) height of combustion tube:500mm

4.) inner diameter of combustion tube:76mm

5.) Limit flow hole at the top of the combustion tube: Φ 40mm.

6.) Resolution:0.1%

7.) Test precision:+-0.2%

8.) Response time:<200ms

9.) Steady time:<5s

10.) Outter Size:600*520*600

11.) Weight:30kg

Features of machine:

1.) Color programmable controller, directly set the oxygen concentration

2.) Imported paramagnetic oxygen sensor, without the need to replace, long-term use to save costs

3.) Oxygen, nitrogen, trace proportional valve control, high accuracy, no deviation

4.) USB data print interface, test data can be directly generated EXCEL format

5.) Pedal type test procedure control, complete all the test independently

6.) Equipped with high temperature and one time shaped quartz glass tube

7.) Equipped with supporting and non supporting specimen holder

8.) Equipped with internal control ignition and hand-held torch two ignition methods

Main configure:

1.) Portable ignition device

2.) Handheld point guns

3.) High temperature resistant quartz glass

4.) Flame height gauge

5.) Control host

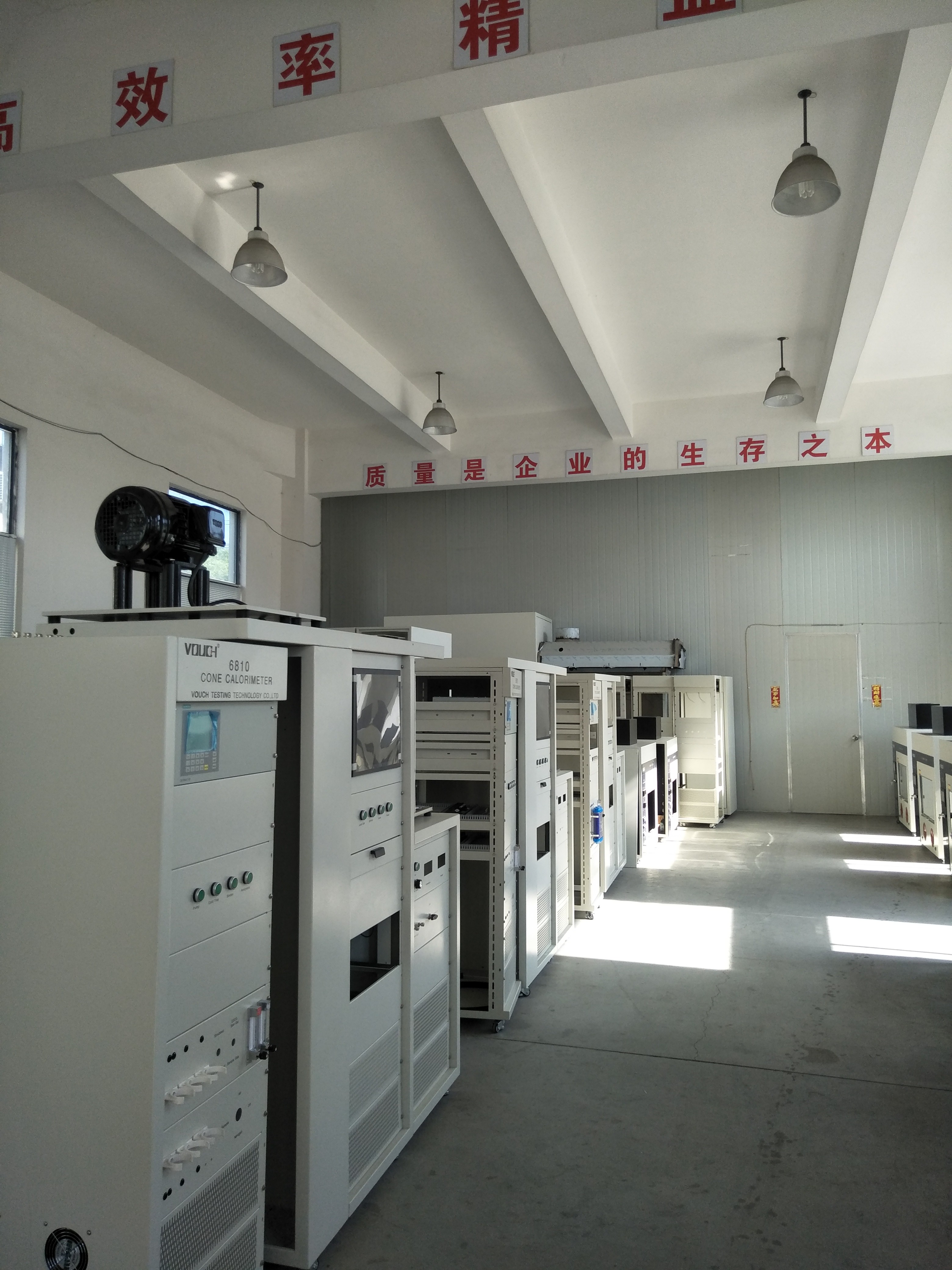

           Suzhou vouch testing technology co.,ltd is a professional company which specialized in various flame retardance test equipment, we focus on research&development,produce,marketing and products test service for third-party ,now we have 3000 square meters standard factory and 1500 square meters test laboratory,we support high quality and cost-effective products and professional industry solution for customers.

Our customer industry can be find all over plastic material,chemical,fire-retardant coating,rail transit,electrical appliance,textile,electrical wire and cable,building material,cars,aircraft material,ships products,research institution and quality testing organization and so on.we have complete production supporting from sales to customer service,we consider customer’s opinion and requirement each link,and we do best to supply good quality ,safty,reliable and cost effective products to customers.

During several year’s efforts ,we specially supply all kinds of fire preventing test equipment as below:

Plastic,electrical appliance special flame prevent test equipment

Electrical wire cable special flame prevent test equipment

Textile industry special flame prevent equipment

Building material special flame prevent equipment

Other non-standard flame prevent equipment

Sales agent and service of Import flame prevent equipment

now, vouch have long term and steady development in sales ,quality control and customer service.We have been the famous brand in flame retardance test equipment.We cooperate with many research institutions and colleges,and our products are in the wake of international and domestic market.

In the future we always insist on professional quality ,good faith,and long term operation principle.We consider at the point of customer values,and help to promote products quality .

Operation principle:integrity-based,sustainable management

Company slogan:professional,revolutionary,service,sincerity

Quality policy:reliable,safty,accuracy,efficient
