Laboratory Proof Tracking Index Iec 60112 Electrical Current
Leakage Resistance Test
Accord with IEC60112, UL 746A, GB/T4207, GB4706.1 ASTM D 363892
standard prescribed simulation experiment project.
Between solid insulation material surface and predetermined size
(2mm x 5mm) platinum electrode ,Applied voltage , timing (30s)and
set height (35mm),drip provisions of volume of liquids (0.1% NH 4
conductive CL) to evaluate resistance to tracking performance of
solid insulation materials in electric and moist or pollution
medium combination ,measure its comparative electric mark of index
(CT1) and withstand voltage marks of index (PT1)
Applicable to lighting equipment, low voltage electric appliance,
household appliances, electric machine, motor, electric tools,
electronic instrument, electrical instruments, information
technology and equipment research, production and quality
inspection department, also suitable for insulation materials,
engineering plastic, electrical connectors and so on..

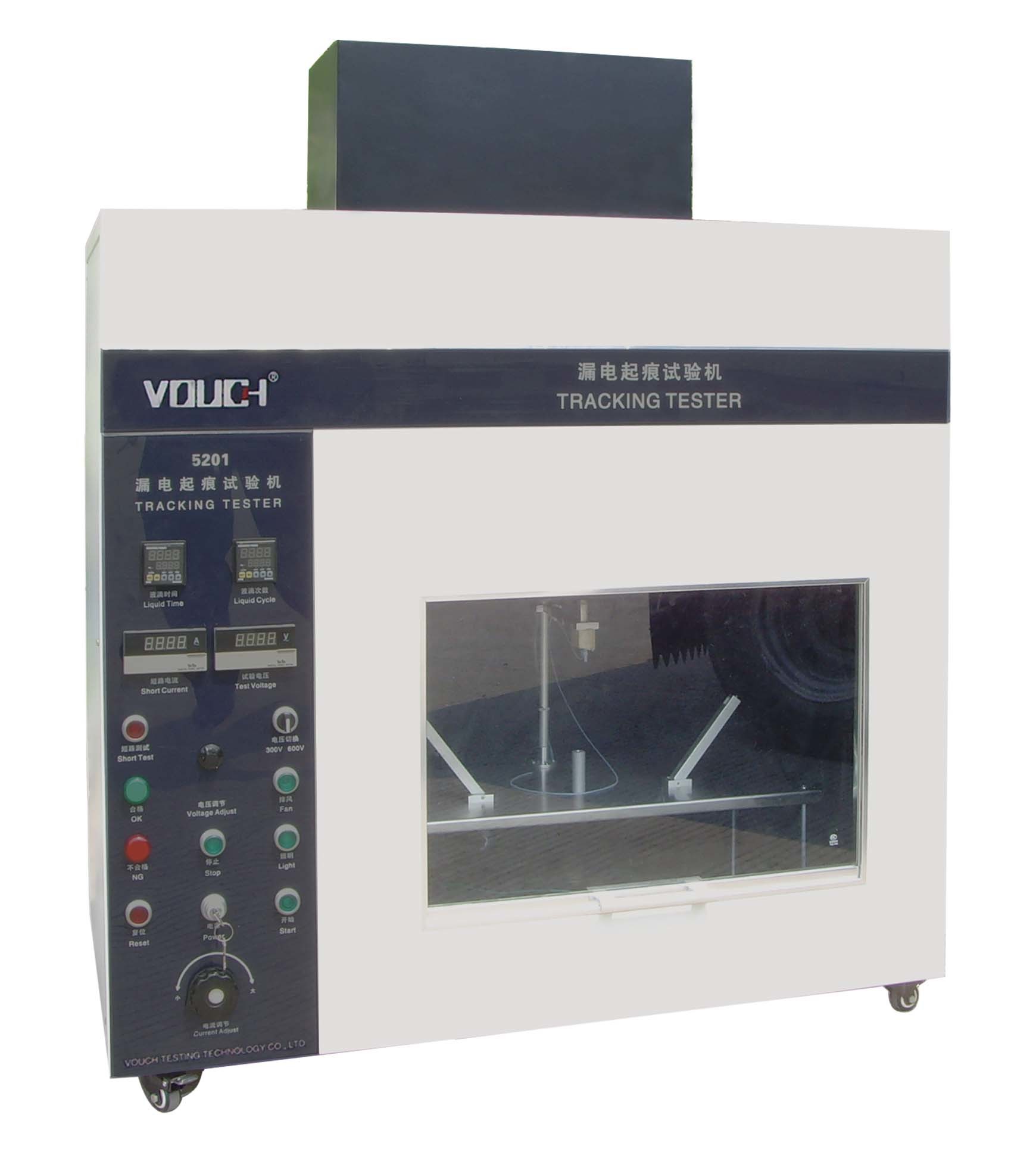

Tracking Test Apparatus of 5201A electric leakage mark tester
Model:5201A
Accord with standard:GB4207 IEC60112
Technology Data:
1.) controller:7 inch programmable controller
2.) electrical pressure display:digital voltmeter
3.) electrical current display:digital current meter
4.) dimensions:1120w*600d*1020h
5.) inner volume: ≥0.5cubic
6.) electrode material:platinum
7.) electrode size:2*5*35mm
8.) electrode pressure:1.00N
9.) electrode distance:4.0mm
10.) drop volume:50 drop/1cubic meter
11.) drop height:35mm (can be adjustable)
12.) drop time:30s+-0.1(can be setted)
13.) drop number:1~9999(can be setted)
14.) test voltage:50v~600v(can be adjustable)
15.) power supply voltage drop:1.0A+-0.1A<8%
16.) mark judgment:0.5A+-0.05A
Features:
1.) 7 inch touch screen control system
2.) digital display voltmeter
3.) digital display current meter
4.) imported micro drop pump
5.) liquid drop time and volume control precision
6.) test qualifid ,inqualified judgment function
7.) door open/close protect system
8.) overvoltage protect system
9.) full operation protect system
10.) tempered glass window
Main configure:
1.) standard electrode *1
2.) imported micro pump *1
3.) explosion prevent tempered glass *2
4.) standard liquid *1
5.) standard ruler *1
| dimensions | 1120w*600d*1020h
|
| inner volume | ≥0.5cubic |
| electrode distance | 4.0mm |
| test voltage | 50v~600v |
