    Lab Needle Flame Test Apparatus For Fire Resistance Test Instrument of Plastic material

    Ask Lasest Price
    Brand Name : vouch
    Model Number : 5600
    Certification : ISO
    Price : NEGOTIABLE
    Payment Terms : TT
    Supply Ability : 25SETS PER MONTH
    Delivery Time : 35DAYS
    • Product Details
    • Company Profile

    Lab Needle Flame Test Apparatus For Fire Resistance Test Instrument of Plastic material

    Lab Needle Flame Test Apparatus For Fire Resistance Test Instrument of Plastic material


    IEC60695-11-5 Needle Flame Test Apparatus For Electronic components
    Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material's ignition risk and fire retardance by a simulation technique the fire.


    This product is designed and manufactured according to IEC60695-11-5:2004(GB/T5169.5-2008) Fire hazard testing for electric and electronic products-part 2: Test methods- needle-flame test methods.


    Needle-flame Tester’s crust and important parts are made by Stainless Steel, Sculpt daintily, endure smoke corrupt, high automatism, high reliability of key parts of apparatus, numeric shows. Fixture could be adjusted. Test procedure could be controlled automatically which is convenience and reliable.

    Determine the ignition risk of the small-flame caused by fault conditions in the equipment by testing the sample burning situation ,burning time and burning length.
    Standard Reference :IEC60695-11-5, GB/T5169.5-2008, GB4706.1-2005..



    AUTO Needle Flame Testing machine used for lighting, low voltage electric appliance, household appliances, electric machine, motor, electric tools, electronic instrument, electrical instrument, electrical connector such as electrical and electronic equipment and parts, components of research, production and quality inspection department, also suitable for insulation materials, engineering plastics

    AUTO Needle Flame Testing equipment with predetermined size (Φ 0.9 mm) needle burner, in 45 °angle burning product,measure the fire risk by product light-off or hold burning time.

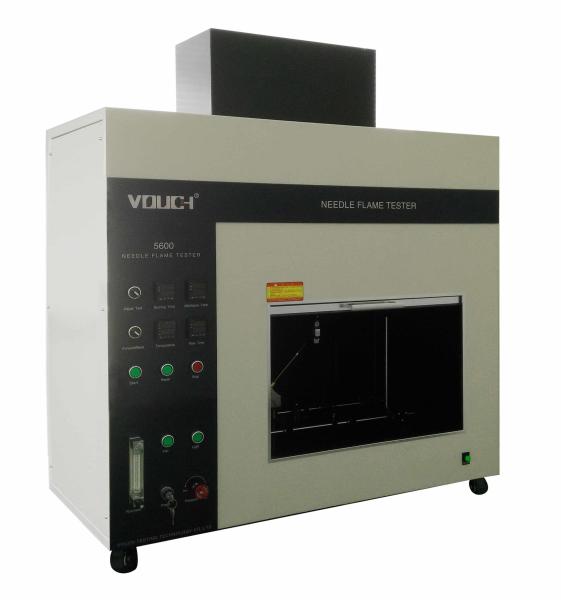

    5600 Needle flame tester


    Technology data:

    1. Accord with standard:IEC-60695,GB5169
    2. Size:1120w*600d*1020h
    3. Flame height adjust:5-45mm
    4. Burning time adjust range:0-99.99s
    5. Temperature display range:0-1200degree
    6. Sustained combustion range:0~99.99s
    7. Remainder combustion range:0~99.99s
    8. Burning time Resolution rate:0.01s
    9. Remainder time resolution rate:0.01s
    10. Flame temperature resolution rate:1degree
    11. Background of inner case:black(power baking varnish)

    Features:

    1. In accord with newest test standard
    2. Import control component
    3. 2mm cold panel power baking varnish inside case
    4. Good aluminum anodizing special clamp
    5. One-touch timing device
    6. In accord with standard combustion apparatus
    7. Armoured glass window

    Flame height adjust

    5-45mm


    Burning time adjust range0-99.99s
    Sustained combustion range0~99.99s
    Burning time Resolution rate

    0.01s



    Lab Needle Flame Test Apparatus For Fire Resistance Test Instrument of Plastic material
