    Cable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test Instrument

    Ask Lasest Price
    Brand Name : VOUCH
    Model Number : 5707
    Price : NEGOTIABLE
    Supply Ability : 10SETS PER MONTH
    Delivery Time : 33DAYS
    Certification : ISO
    Payment Terms : TT
    • Product Details
    • Company Profile

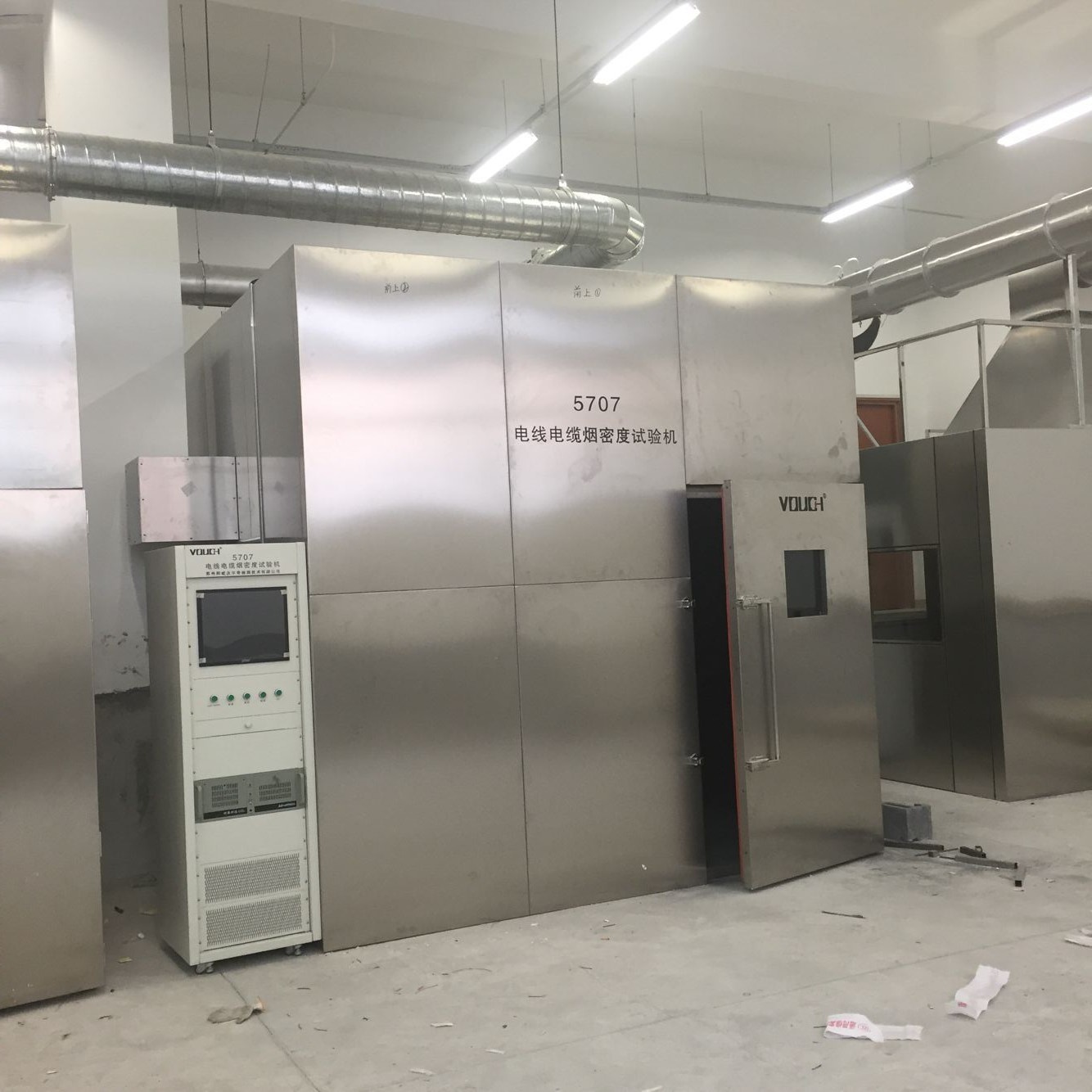

    Cable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test Instrument

    Cable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test Instrument

    Model:5707

    1.)Standard:IEC 61034,BS 6853,GB/T17651.1~2

    2.)Container size(mm):3000*3000*3000

    3.)Inner container material:SUS304 stainless steel

    4.)Inner filler:calcium silicate fire resistive material

    5.)Outer container:cold plate+outdoor grade powder paint

    6.)Lab door and watch window

    7.)Install transparent light side window on the wall both left and right

    8.)Install air compressor device in both left and right side

    9.)Open air gallery on the container ground level,to balnce the atmosphere in inner and ourside of container

    10.)Provide centrifugal blower on the top of container,eliminate smoke produced in test

    11.)electric source:AC 220V 50/60HZ 20A

    12.)weight:3000kg

    13.)flame device:spark ignition ,protect tester’s safe

    14.)flame test bracket :stainless alcohol pallet

    15.)optical system:DC 12V halogen lamp

    Power:100w

    Light source acceptance:silicon photocell

    16.)optical adjust system:0,0.1,1,30,100% point adjust

    17.)test software:all computer control smoke density software

    StandardIEC 61034,BS 6853,GB/T17651.1~2
    Container size3000*3000*3000
    electric sourceAC 220V 50/60HZ 20A
    Light source acceptance

    silicon photocell



    Cable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test InstrumentCable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test InstrumentCable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test InstrumentCable Flame Test of Wire Smoke Density Tester For Horizontal Burning Test Instrument
