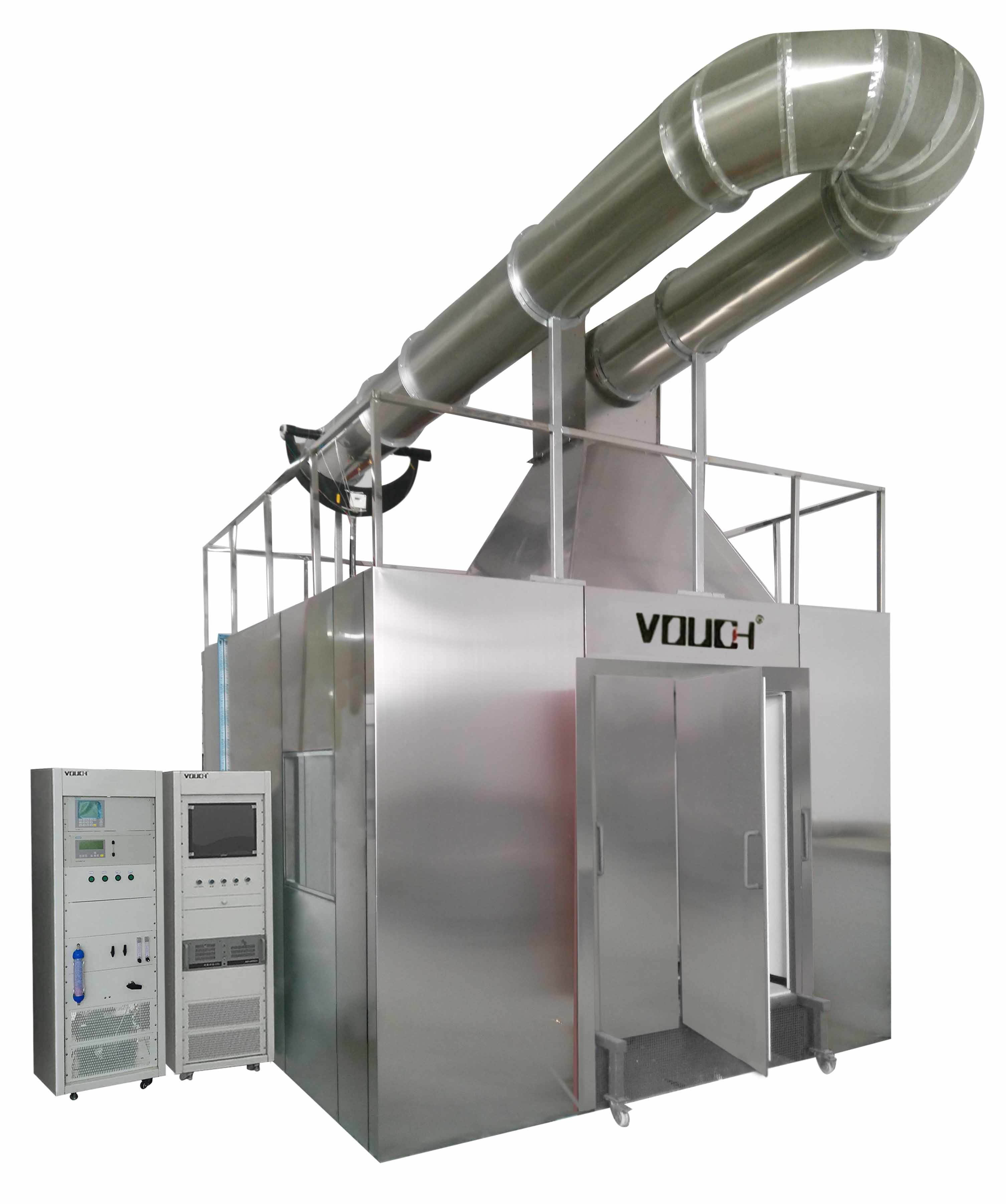

Building Material Flammability Test of Single Combustion Test Equipment and Instrument

Model:6160

Standard:BS EN 13823 GB/T 20284

Technical data:

1. standard 19 cabinet device,including analysis meter,oxygen ,co2/co analysis module
2. data collection plate card,can collect temperature,gas pressure difference and gas analysis data etc.
3. 2-way stainless steel tachometer probe,provide 1 set micro differencial pressure sensor
4. NI platform develop test software
5. Size of Burner lab (mm):3000*3000*2800
6. Size of burner gas exhaust ductwork :5200*3000*1800mm
7. Size of control case:800*1200*1500mm
8. Speed of gas exhaust:0.2m3/s~0.8m3/s(can be adjusted)
9. Temperature measurement:import K armour thermal
10. Measure precision:+-0.3℃
11. Precision of Pressure sensor :+-2pa
12. Test time:0-9999.9s(software setted)
13. Time resolution:0.1s
14. Oxygen sensor:import paramagnetic oxygen 0%-25%
15. Gas analysis meter:import non-dispersive infrared analyzer(NDIRA) SIEMENS FUSHIMEI
16. CO2:0~10%
17. CO: 0~1%
18. Equipment Electric pressure:AC380V 15KW

Main configuration

1. standard 19 cabinet device
2. import paramagnetic oxygen density sensor
3. import gas analysis
4. data collection card ,collect data accurately
5. import quality flow controller device
6. desiccant cooling trap
7. gas constant current and voltage device
8. gas collection pump device
9. provide PTFE flexible connection and provide computer printer device
10. apolegamy exhaust pipe,centrifugal blower etc test device
11. apolegamy burner test house and waste gas treatment device
